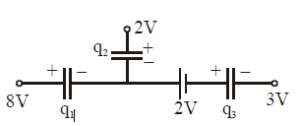

A part of circuit is shown in figure. All capacitors have capacitance of 2μF. Then :- Physics diagram: A part of circuit is shown in figure.
Charge on capacitor C1 is zero
Charge on capacitor C2 is zero
Charge on capacitor C3 is zero
Charge on capacitors can't be determined

No solution provided for this question.
