Acceleration Due to Gravity and its variation

Question 11: easy

The mass of the moon is about 1.2% of the mass of the earth. compared to the gravitational force the earth exerts on the moon, the gravitational force the moon exerts on earth :

1. Is the same
2. is smaller
3. Is greater
4. Varier with its phase
View Answer

From Newton's Third law of motion force applied by object A on B and Force applied by B on A will have equal magnitude.

Question 12: easy

The average density of the earth :

1. does not depend on g
2. is a complex function of g
3. is directly proportional to g
4. is inversely proportional to g
View Answer

The average density of the Earth (\( \rho \)) is directly proportional to the acceleration due to gravity (\( g \)) at the surface due to the relationship expressed by the formula:

\[
g = \frac{G M}{R^2},
\]

where:
- \( G \) is the gravitational constant,
- \( M \) is the mass of the Earth,
- \( R \) is the radius of the Earth.

The mass \( M \) can be expressed in terms of density and volume:

\[
M = \rho V = \rho \left( \frac{4}{3} \pi R^3 \right).
\]

Substituting this into the equation for \( g \):

\[
g = \frac{G \left( \rho \cdot \frac{4}{3} \pi R^3 \right)}{R^2} = \frac{4\pi G \rho R}{3}.
\]

This shows that \( g \) is directly proportional to \( \rho \) (as \( R \) and \( G \) are constants), meaning that as the average density of the Earth increases, the value of \( g \) also increases.

Question 13: moderate

Two types of balances, the beam balance and the spring balance are commonly used for measuring weight at shops. If we are at the moon, we can continue to use :

1. Only the beam type balance without any change
2. Only the spring balance without any change
3. both the balances without any change
4. Neither of the two balances without making any change
View Answer

On the Moon, the acceleration due to gravity is weaker (about \( \frac{1}{6} \) of that on Earth), affecting how a spring balance measures weight.

A spring balance relies on the gravitational force to measure weight based on the stretch of the spring, so it would give a lower reading on the Moon.

In contrast, a beam balance compares masses based on equilibrium, unaffected by gravity. Thus, it can be used without any change to measure weight accurately on the Moon.

Question 14: easy

A body released from a height h takes time t to reach earth’s surface. The time taken by the same body released from the same height to reach the moon’s surface is :

1. t
2. 6t
3. t/6
4. √6t
View Answer

The time taken for an object to fall freely from a height \( h \) is given by the equation:

\[
h = \frac{1}{2} g t^2,
\]

where \( g \) is the acceleration due to gravity.

1. For Earth:
\[
h = \frac{1}{2} g_E t^2 ; t = \sqrt{\frac{2h}{g_E}}.
\]

2. For the Moon, where \( g_M \approx \frac{1}{6} g_E \):
\[
h = \frac{1}{2} g_M t_m^2 ; t_m = \sqrt{\frac{2h}{g_M}} = \sqrt{\frac{2h}{\frac{1}{6} g_E}} = \sqrt{12 \cdot \frac{2h}{g_E}}.
\]

This can be simplified using the time \( t \) from Earth:

\[
t_m = \sqrt{6} \cdot t = \sqrt{6} \cdot t.
\]

Thus, the time taken by the same body to reach the Moon's surface is approximately \( \sqrt{6} t \).

Question 15: moderate

The depth at which the effective value of acceleration due to gravity is g/4 is (R is radius of the earth) :

1. R
2. 3R/4
3. R/2
4. R/4
View Answer

To find the depth \( d \) at which the effective acceleration due to gravity is \( \frac{g}{4} \), we use the formula for gravity at depth:

\[
g_d = g \left(1 - \frac{d}{R}\right).
\]

Setting \( g_d = \frac{g}{4} \):

\[
\frac{g}{4} = g \left(1 - \frac{d}{R}\right).
\]

Dividing both sides by \( g \):

\[
\frac{1}{4} = 1 - \frac{d}{R}.
\]

Rearranging gives:

\[
\frac{d}{R} = 1 - \frac{1}{4} = \frac{3}{4}.
\]

Thus:

\[
d = \frac{3R}{4}.
\]

So, the depth at which the effective value of acceleration due to gravity is \( \frac{g}{4} \) is \( \frac{3R}{4} \).

Question 16: moderate

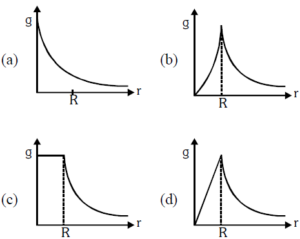

The dependence of acceleration due to gravity ‘g’ on the distance ‘r’ from the centre of the earth, assumed to be a sphere of radius R of uniform density, is as shown in figure below:-

The correct figure is :

1. (a)
2. (b)
3. (c)
4. (d)
View Answer

\[ g= \frac{GMr}{R^{3}}  \] for internal point

\[ g= \frac{GM}{r^{2}}  \] for external point



Question 17: easy

If \(R\) is the radius of the earth and \(g\) is the acceleration due to gravity on the earth surface. Then the mean density of the earth will be

1. \(\frac{3g}{4\pi RG}\)
2. \(\frac{4\pi G}{3gR}\)
3. \(\frac{\pi RG}{12g}\)
4. \(\frac{3\pi R}{4gG}\)
View Answer

Acceleration due to gravity is \(g = \frac{GM}{R^2}\). Since mass \(M = \rho \times \frac{4}{3}\pi R^3\), we get \(g = \frac{G \left(\frac{4}{3}\pi R^3 \rho\right)}{R^2} = \frac{4}{3}\pi \rho GR\). Rearranging gives \(\rho = \frac{3g}{4\pi RG}\).

Question 18: easy

Consider earth to be a homogeneous sphere. Scientist A goes deep down in a mine and scientist B goes high up in a balloon. The value of g measured by:

1. A goes on decreasing and that by B goes on increasing
2. B goes on decreasing and that by A goes on increasing
3. Each decreases at the same rate
4. Each decrease at different rates
View Answer

Acceleration due to gravity decreases with depth as \( g_d = g(1 - \frac{d}{R}) \) and with height as \( g_h = g(1 - \frac{2h}{R}) \). Since the formulas and rates of decrease are different, they decrease at different rates.

Question 19: easy

Two planets of radii in the ratio 2 : 3 are made from the material of density in the ratio 3 : 2. Then the ratio of acceleration due to gravity \( g_1 / g_2 \) at the surface of the two planets will be:

1. 1
2. 2.25
3. 4/9
4. 0.12
View Answer

Acceleration due to gravity at the surface of a planet is given by \( g = \frac{4}{3} \pi G R \rho \). Therefore, \( \frac{g_1}{g_2} = \frac{R_1}{R_2} \times \frac{\rho_1}{\rho_2} = \frac{2}{3} \times \frac{3}{2} = 1 \).

Question 20: easy

The height at which the weight of a body becomes 1/9th its weight on the surface of earth (radius of earth is R):

1. \(h = 3R\)
2. \(h = R\)
3. \(h = \frac{R}{2}\)
4. \(h = 2R\)
View Answer

Since acceleration due to gravity varies with height as \(g' = g \frac{R^2}{(R+h)^2}\), setting \(g' = g/9\) gives \(R+h = 3R\), which simplifies to \(h = 2R\).
